Solidigm D7-P5520 | 15.36TB PCIe Gen4 Enterprise SSD

What Does “1 DWPD” Really Allow You to Write? The Endurance Math A common buying mistake is assuming “1 DWPD is not enough.” Do the math: 15.36 TB × 1 DWPD × 365 days × 5 years ≈ 28 PB of lifetime writes (PBW). For read-heavy mainstream workloads—virtualization, databases, cloud and web services—most deployments will not consume even half of that budget over a five-year life. A more counterintuitive point: the larger the drive, the more durable 1 DWPD becomes. A 15.36 TB 1-DWPD drive carries more than double the write budget of a 1 TB 7-DWPD drive—which is why high-capacity enterprise SSDs can safely use a 1-DWPD rating. The Solidigm D7-P5520 is a typical example: a mainstream 1-DWPD drive…

  • Product Details

What Does “1 DWPD” Really Allow You to Write? The Endurance Math

A common buying mistake is assuming “1 DWPD is not enough.” Do the math: 15.36 TB × 1 DWPD × 365 days × 5 years ≈ 28 PB of lifetime writes (PBW). For read-heavy mainstream workloads—virtualization, databases, cloud and web services—most deployments will not consume even half of that budget over a five-year life.

A more counterintuitive point: the larger the drive, the more durable 1 DWPD becomes. A 15.36 TB 1-DWPD drive carries more than double the write budget of a 1 TB 7-DWPD drive—which is why high-capacity enterprise SSDs can safely use a 1-DWPD rating. The Solidigm D7-P5520 is a typical example: a mainstream 1-DWPD drive well suited to primary-storage replacement, while write-intensive deployments should step up to the D7-P5620 (3 DWPD).

Core Specifications

Attribute Specification
Interface PCIe 4.0 x4, NVMe
Form factors U.2 15mm, E1.S 9.5/15mm, E1.L 9.5mm
Capacity 1.92TB / 3.84TB / 7.68TB / 15.36TB
Sequential read / write 7,000 MB/s / 4,200 MB/s
Random read / write (4K) 1,100,000 / 220,000 IOPS
Latency (seq / rand) 10 us / 13 us; 75 us / 20 us
Endurance 1 DWPD; 28.0 PBW (15.36TB)
MTBF 2,000,000 hours
Power 20 W active / 5 W idle
Security AES-256, TCG Opal 2.0, FIPS 140-3 L2 (U.2 15mm)

Performance That Stays Consistent

The D7-P5520 delivers up to 7,000 MB/s sequential read and 4,200 MB/s sequential write (128KB), with 1.1M random read IOPS and 220K random write IOPS at 4K. Latency ratings are 10us/13us sequential and 75us/20us random. What matters more for production is consistency: the D7 series runs PLI (Power Loss Imminent) testing under real-world conditions and holds up to 90% IOPS consistency with under 0.3% variability across the drive’s life – no cliff-drop after the SLC cache fills.

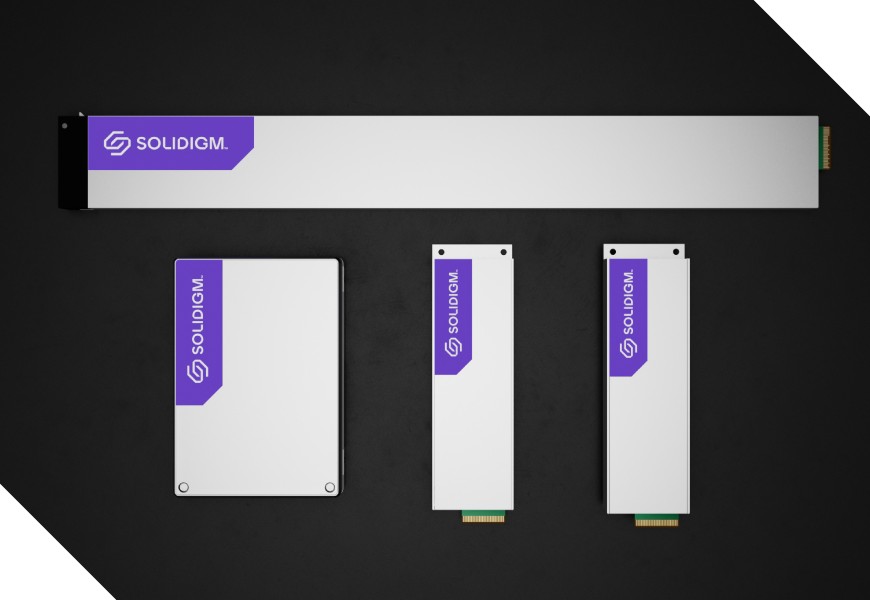

Solidigm D7-P5520 enterprise SSD
Solidigm D7-P5520: PCIe 4.0 x4 data center SSD with U.2, E1.S and E1.L form factors.

Form Factors and Deployment

The D7-P5520 ships in U.2 15mm (the standard 2.5-inch slot found in virtually every enterprise server), E1.S 9.5/15mm for 1U high-density NVMe, and E1.L 9.5mm for extreme-capacity storage nodes. The U.2 version covers 1.92TB through 15.36TB in the same footprint, so capacity upgrades are a drive swap, not a chassis change. With heritage from Intel’s data center SSD team, the D7 family inherits the firmware maturity and platform validation ecosystem that enterprise buyers rely on.

Security and Telemetry

Hardware AES-256 encryption with TCG Opal 2.0 management, and FIPS 140-3 Level 2 certification on the U.2 15mm models (1.92TB-15.36TB) for regulated environments. Operational features include PCIe VDM support, variable sector sizes (512/4K), scatter-gather with dataset management, advanced telemetry logs, dynamic namespaces and device self-test – the hooks modern storage stacks and fleet-management tools expect.

Solidigm P5520 SSD top and bottom view
Real drive view: top label and bottom PCB of the D7-P5520 7.68TB U.2.

Reliability Numbers

  • Endurance: 28.0 PBW on 15.36TB (1 DWPD) – roughly 5 years of full-drive writes per day.
  • MTBF: 2 million hours, with PLI (Power Loss Imminent) design tested under real-world power events.
  • Consistency: up to 90% IOPS consistency, <0.3% variability across life.
  • Form-factor breadth: U.2 / E1.S / E1.L – one controller platform across server and storage node designs.

Buying FAQ

  • Is 1 DWPD enough? For virtualization, databases, cloud and web workloads, yes – see the endurance math above.
  • P5520 vs P5620? P5520 = 1 DWPD mainstream; P5620 = 3 DWPD for mixed/write-heavy workloads.
  • FIPS available? FIPS 140-3 L2 on U.2 15mm 1.92-15.36TB models.
  • Best-fit servers? Any server with U.2 NVMe bays – up to 24 in a PowerEdge R760 or 28 in an xFusion 2288H V7.

Building a high-capacity NVMe tier? The 15.36TB U.2 delivers the largest single-drive capacity in its class for dense storage nodes. As an independent supplier we offer competitive pricing, global shipping, free consultation and custom configuration – contact us for the best per-TB quote.

Related SSD models

Frequently asked questions

Which server models is this drive compatible with?

Listed specification: 15.36TB PCIe Gen4 Enterprise SSD. It is a standard enterprise drive in the form factor and interface listed above. Send your server model and we confirm compatibility, carrier and firmware level before shipping.

Do you provide the OEM part number cross-reference?

Yes. The OEM part number and our own part number are both listed on the quotation, so your team can check it against the existing BOM.

Can I mix capacities in one shipment?

Yes. Mixed capacity and mixed model orders are consolidated into one shipment, with each line item listed separately on the packing list.

Can you confirm condition and firmware before I order?

Yes. Before the order we send the exact part number, condition and, where relevant, the firmware level, for your written confirmation.

How are warranty and lead time handled?

Warranty and the lead time for this drive are stated on the quotation. For bulk orders we align the warranty start date across the whole batch.
