HUAWEI New-Gen OceanStor 6810 High-End Hybrid Flash Storage - Xinchuan


HUAWEI STORAGE/

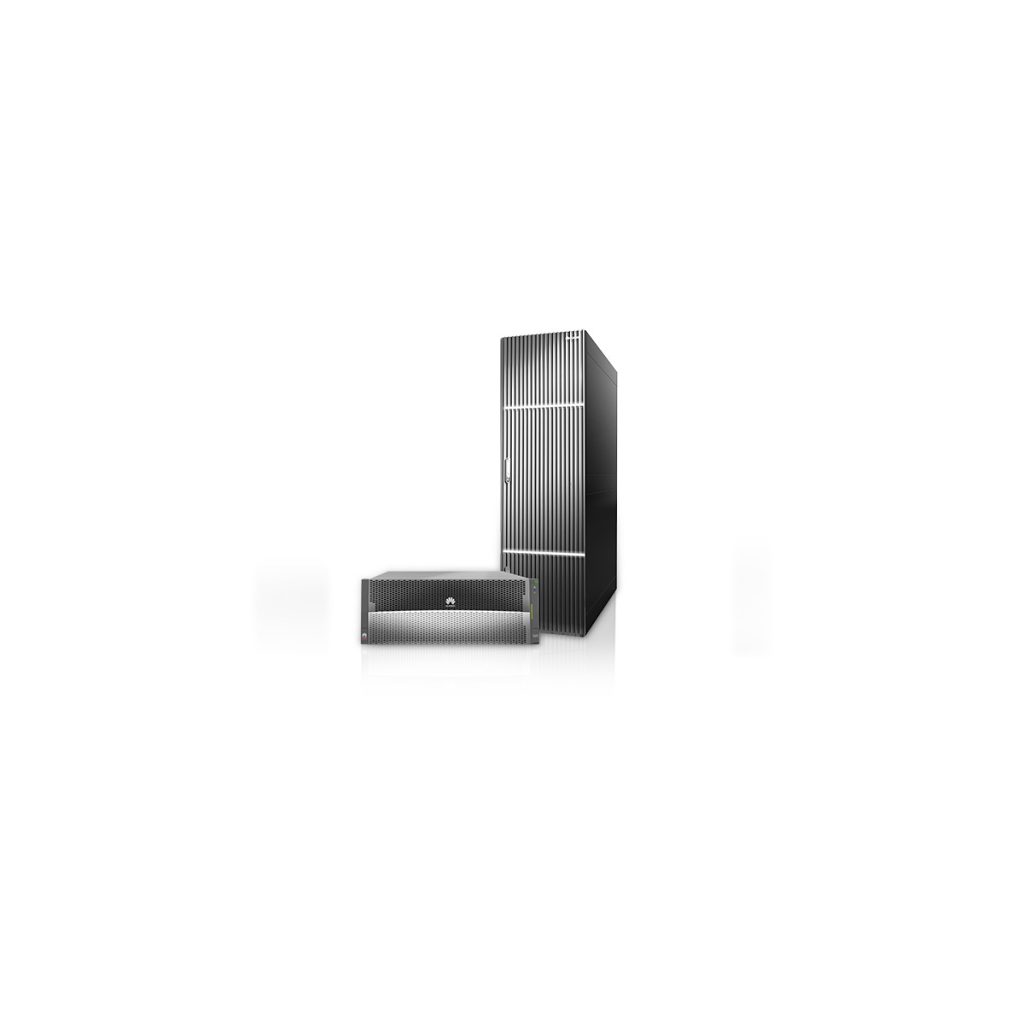

HUAWEI New-Gen OceanStor 6810 High-End Hybrid Flash Storage

Huawei New-Gen OceanStor 6810 features industry-leading SmartMatrix architecture, an active-active solution for Storage Area Network (SAN) and Network-Attached Storage (NAS), flash acceleration technology, a high-performance hardware platform, and a wide range of solutions designed to improve data protection efficiency.

  • Product Details

The Huawei New-Gen OceanStor 6810 High-End Hybrid Flash Storage is an enterprise expansion enclosure supplied and configured by Beijing Xinchuan Technology. Supported drive capacities include 16TB, 512GB. Units are quoted by configuration, including controller and drive layout, so the system can be matched to the buyer’s capacity and protocol needs.

The enclosure connects to supported storage controllers over SAS expansion ports and adds raw drive bays for capacity growth. Before dispatch each system is checked for controller status, drive recognition, link training and front-to-back cabling.

  • Parameters: OceanStor 6810
  • Maximum Number of Controllers: 16
  • Supported Storage Protocols: FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, FTP*, HTTP*, NDMP and S3*, NFS over RDMA
  • Front-End Channel Port Types: 8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, and 25/100Gbps NVMe over RoCE/NFS over RDMA
  • Back-End Channel Port Types: 100 Gbps RDMA/SAS 3.0

Each unit is supplied by Beijing Xinchuan Technology with testing, warranty coverage and configuration support, and we ship to enterprise customers worldwide. Contact us for current stock, lead time and a configured quote.

Parameters OceanStor 6810
Hardware Specifications
Maximum Number of Controllers 16
Maximum Cache (dual controllers, grows with the expansion of controllers) 512 GB to 16 TB
Supported Storage Protocols FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, FTP*, HTTP*, NDMP and S3*, NFS over RDMA
Front-End Channel Port Types 8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, and 25/100Gbps NVMe over RoCE/NFS over RDMA
Back-End Channel Port Types 100 Gbps RDMA/SAS 3.0
Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure 28
Maximum Number of Front-End Host Ports per Controller Enclosure 96
Hard Disk Types NVMe SSD, SAS SSD, SAS, and NL-SAS
Software Specifications
Supported RAID Levels RAID 5, RAID 6, RAID10*, and RAID-TP (tolerating the simultaneous failure of three disks)
Value-Added Software SmartAcceleration, SmartVirtualization, SmartMigration, SmartQoS, SmartQuota, SmartThin, SmartMulti-tenant, SmartCompression, SmartDedupe, SmartMobility*, SmartMove
HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperEncryption, HyperDetect*,HyperLink, CloudBackup*, NFS+

Related models

Frequently asked questions

Are drives and expansion shelves included?

Controllers, drives, shelves and licenses are quoted as separate line items so you only pay for what you need. Tell us the target capacity and we build the configuration.

Is firmware and licensing included?

Firmware level and any required license are confirmed on the quotation, because they depend on the release your environment runs.

Is the system tested before dispatch?

Every unit is powered on, firmware-checked and burn-in tested before dispatch. Test logs or photos can be shared on request.

Can you confirm controller model, firmware level and condition before I order?

Yes. Before the order we send the controller model, firmware level, drive list and condition for your written confirmation.

How are warranty and lead time handled?

Warranty, firmware support period and lead time are confirmed on the quotation, since they follow the controller and drive mix you choose.
