24TB 的密度账：一盘顶过去一个柜

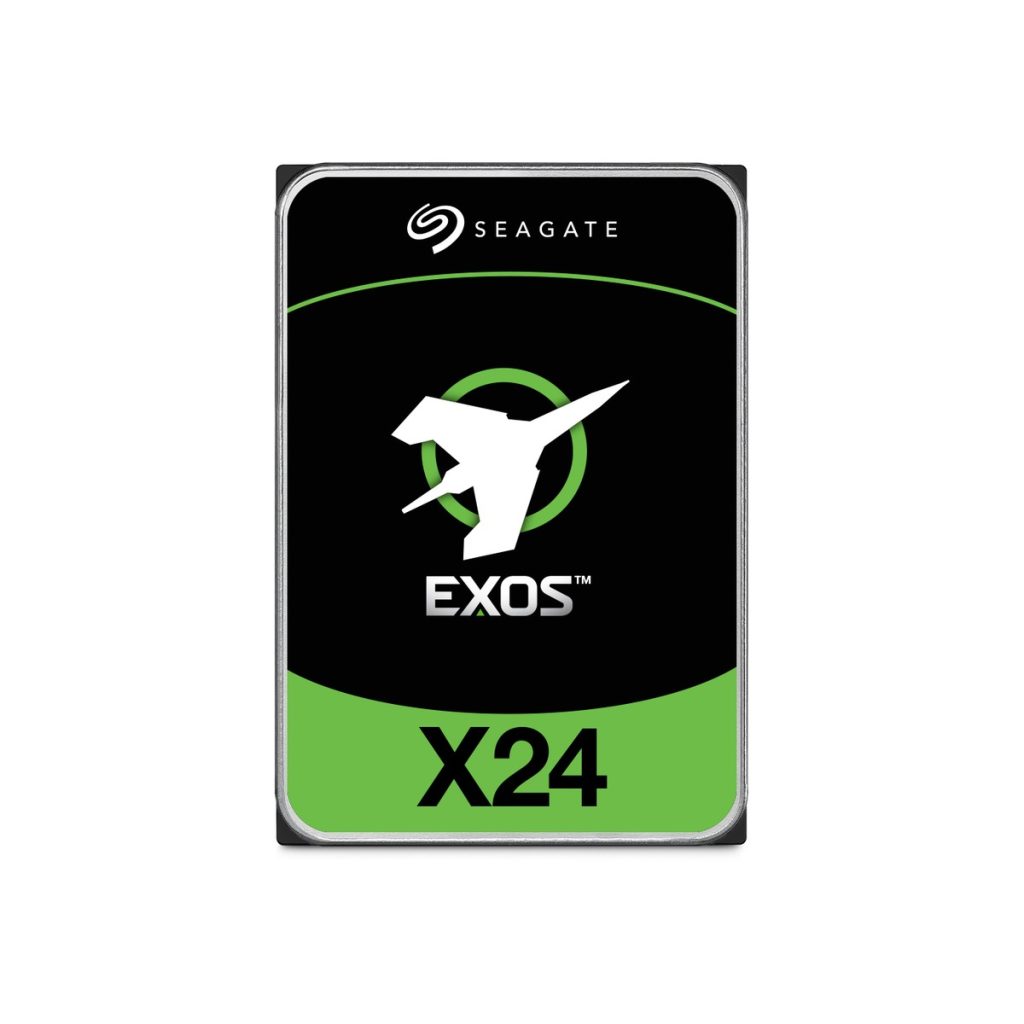

企业存储的每 TB 成本由三件事决定：单盘容量、盘位利用率和重建效率。Seagate Exos X24 把 24TB 塞进标准 3.5 英寸盘位（10 盘片氦气密封、CMR），意味着一个 44 盘位节点就是 1.06 PB——同样机架空间里比 20TB 时代多出 20% 的容量，电费、制冷、交换端口一分不多花。这是 2026 年云规模容量层（对象存储、大数据、备份归档）的密度基准。
Core Specifications
| Attribute | Specification |
|---|---|
| Model | ST24000NM000C (SATA 512e) / ST24000NM002H (SATA ISE) |
| Capacity | 24 TB (CMR, 10-disk helium-sealed) |
| Interface / format | SATA 6 Gb/s, 512e |
| Rotational speed | 7,200 rpm |
| Cache | 512 MB |
| Max sustained transfer | 285 MB/s |
| Workload rating | 550 TB transferred per year |
| Reliability | MTBF 2,500,000 hours |
| Form factor | 3.5-inch, helium-sealed |
What Reviewers Measured
Seagate’s spec sheet is one thing; independent test data is what buyers should trust. StorageReview’s Exos X24 evaluation measured 4K random performance at 6,000 IOPS read and 1,763 IOPS write (SMB) – strong figures for a 24TB helium drive – and the drive held steady throughput across their test suites. RealHardwareReviews re-tested the drive at 50/75/90% capacity fill and reported consistent performance as the drive fills – the behavior that matters in a production object store, where drives spend their lives mostly full.
- 4K random (measured): ~6,000 IOPS read / ~1,763 IOPS write
- Capacity-fill consistency: stable performance at 50-90% fill (per independent re-test)
- Sustained transfer: 285 MB/s max (manufacturer), confirmed in sustained-throughput testing
Sources: StorageReview (storagereview.com/review/seagate-exos-x24-24tb-hdd-review), RealHardwareReviews (Exos X24 capacity-fill re-test).
Reliability for the Capacity Era
- MTBF 2,500,000 hours with a 550 TB/year workload rating – sustained data-center duty, not desktop hours.
- Full CMR – no shingled writes, random-write behavior stays classic for any array or SDS stack.
- Helium-sealed 10-disk design – lower drag, stable pressure, consistent performance over life.
- 512e with SED (ISE) variant (ST24000NM002H) for at-rest encryption without extra hardware.
For comparison, the WD Ultrastar DC HC580 (24TB) is the ePMR/OptiNAND alternative at the same capacity point – the two 24TB classes bracket the enterprise 3.5-inch tier in 2026.
Deploying 24TB Drives
In a FusionServer 5288 V7 (44 x 3.5-inch bays) or PowerEdge R760 (12 x 3.5-inch), the Exos X24 changes the capacity math – but 24TB drives also rebuild slower. Follow the distributed-storage playbook: dedicated backend fabric for recovery traffic, spare OSD slots budgeted, and rack-aware placement so one drive failure never cascades (see our distributed storage guide for the full design).
Buying FAQ
- CMR or SMR? Full CMR – no shingling caveats, classic random-write behavior.
- Interface? SATA 6Gb/s 512e; ISE (SED) variant available as ST24000NM002H.
- Workload fit? Object storage, big data, backup/archive, surveillance – 550 TB/year rated.
- Measured performance? ~6,000 IOPS 4K read per StorageReview’s test.
- Best-fit servers? Any 3.5-inch hot-swap bay: 44 in a 5288 V7, 12 in an R760.
Density Math: 24TB vs 20TB per Node
| Node config | 24TB Exos X24 | 20TB drives |
|---|---|---|
| 44-bay node raw | 1.06 PB | 880 TB |
| 10-node cluster raw | 10.6 PB | 8.8 PB |
| Per-bay capacity | +20% | baseline |
The +20% per-bay capacity compounds across a cluster at the same rack, power and network budget – the density premium pays back in floor space, not just spec sheets.
Building a PB-scale storage tier? As an authorized distributor we supply the Exos X24 with 5288 V7 nodes, matching cables and cluster design – factory-direct pricing, 3-year warranty, global shipping and free density consultation. Contact us for a per-TB quote.
