The Versatile 2U Platform for Software-Defined Everything

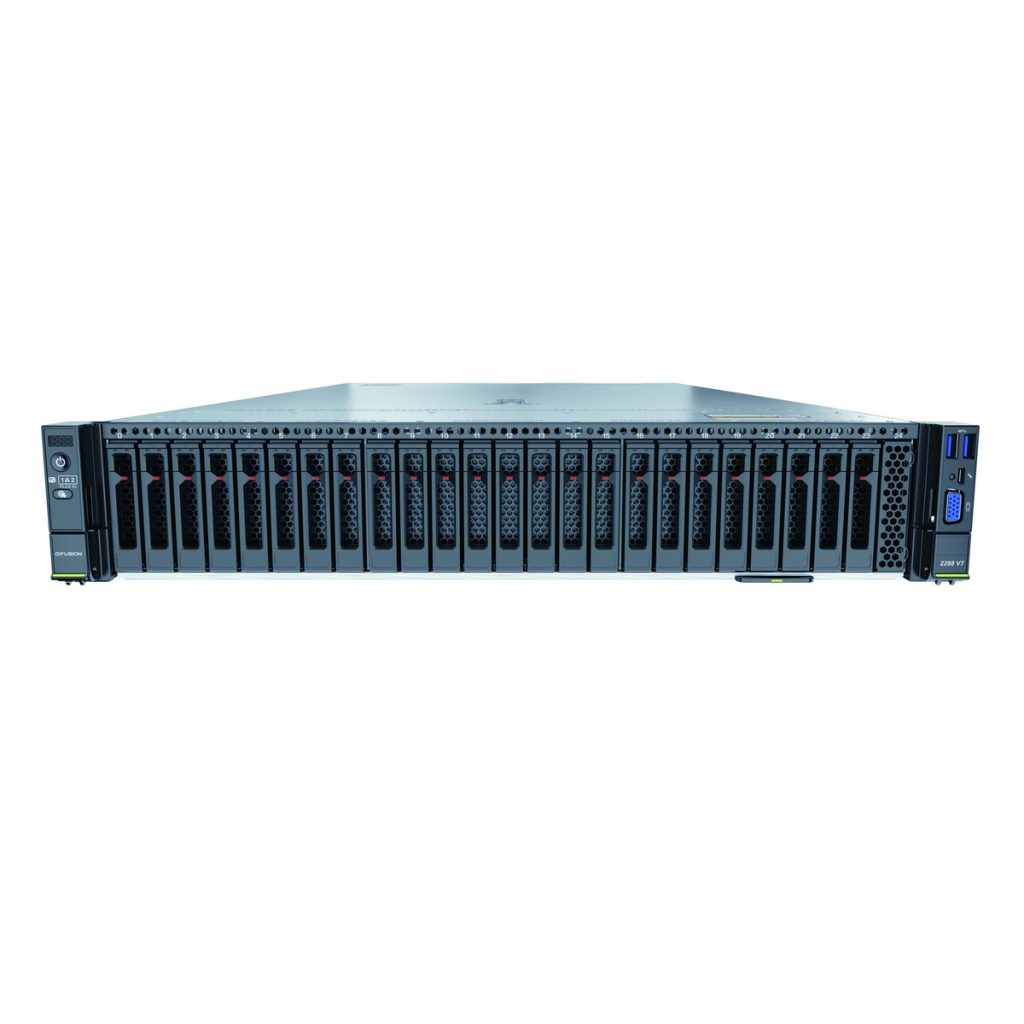

The xFusion FusionServer 2288H V7 is the most configurable server in the xFusion lineup – a 2U dual-socket platform supporting up to 2x 4th/5th Gen Intel Xeon Scalable processors at 385W TDP, 32 DDR5 DIMMs (8 TB), 25x 2.5-inch bays with 28 NVMe support, and 14 PCIe 5.0 slots. It is the go-to choice for software-defined storage, virtual desktop infrastructure, content delivery networks, and database clusters where storage density and I/O throughput define performance.

Key Specifications

Component	Specification
Form Factor	2U rack server
Processor	1-2x 4th/5th Gen Intel Xeon Scalable (max 385W TDP)
Memory	32 DDR5 DIMMs, up to 8 TB
Storage	Front: Up to 25x 2.5-inch / 20x 3.5-inch SAS/SATA/NVMe
NVMe	Up to 28 NVMe SSDs
PCIe	14x PCIe 5.0 + 2x OCP 3.0 mezzanine
GPU Support	Up to 4x double-wide or 14x single-wide GPUs
Power Supply	1+1 redundant, 900W/1500W/2000W/3000W
Management	iBMC with Redfish, SNMP, predictive failure analysis

Recommended Configurations

Scenario	CPU	Memory	Storage	GPU
Ceph OSD Node	2x Xeon Gold 6430 (32C)	512GB (16x 32GB)	25x 7.68TB NVMe	None
VDI Host (300 seats)	2x Xeon Platinum 8470 (52C)	2TB (32x 64GB)	8x 3.84TB NVMe (RAID 10)	4x NVIDIA A2
CDN Edge Node	2x Xeon Gold 6448Y (32C)	1TB (16x 64GB)	12x 7.68TB NVMe	None
Database Cluster	2x Xeon Platinum 8450 (28C)	1TB (16x 64GB)	8x 3.84TB NVMe (RAID 10)	None

Ideal Workloads

Software-Defined Storage: Ceph, VMware vSAN, and MinIO clusters benefit from the 2288H V7’s 28 NVMe bays – more drives per node means fewer nodes per usable terabyte. 14 PCIe 5.0 slots provide the network bandwidth to keep 28 NVMe drives fed.
VDI: Support up to 300 concurrent virtual desktops with GPU acceleration for knowledge workers, designers, and engineers. The 14 PCIe slots enable both GPU risers and high-speed NICs without slot contention.
CDN and Streaming: High-density NVMe storage per node reduces edge POP footprint. Dual OCP 3.0 slots keep networking separate from PCIe expansion.
Database Clusters: 25 drive bays provide headroom for data growth without adding nodes. Balance SAS HDD bulk storage with NVMe caching tiers in the same chassis.

2288H V7 vs Dell R760: Which 2U Platform?

Feature	xFusion 2288H V7	Dell PowerEdge R760
CPU max TDP	385W per socket	350W per socket
NVMe max	28 drives	24 drives
PCIe slots	14x Gen5 + 2x OCP	8x Gen4/Gen5
GPU	4x DW / 14x SW	2x DW / 6x SW
Management	iBMC	iDRAC9
Best for	I/O-heavy SDS, VDI, CDN	Balanced enterprise workloads

Why Source Through Xincuan?

We configure 2288H V7 servers for your exact workload with factory-direct pricing, 3-year manufacturer warranty, global shipping, and free architecture consultation.

Request a 2288H V7 quote
