Consolidation Is a Math Problem Before It Is a Migration

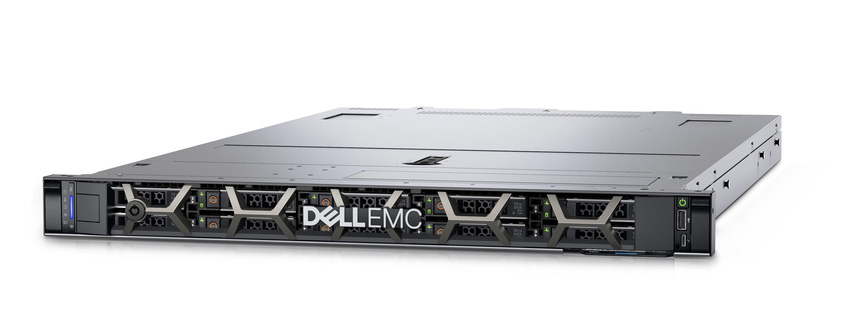

Every data center has the same inventory: ten racks of aging 1U servers, each running a few virtual machines at 15-20% CPU, each drawing power, each burning a vSphere license, each needing patching. Consolidation looks simple – buy fewer, bigger servers – yet most consolidation projects fail on one of two rocks: they under-size memory or they over-estimate density. This guide turns consolidation into a three-step decision framework with the numbers to defend it.

Step 1 – Profile the Fleet, Not the Servers

Pull 90 days of metrics (vCenter/OpenManage) and classify each VM by its binding constraint:

• CPU-bound: sustained high utilization, bursty (CI/CD, render, analytics).
• Memory-bound: idle CPU but maxed RAM (Java, SQL, VDI gold images).
• IO-bound: high IOPS but low CPU (databases, logging, message queues).
• Static: <5% CPU for 90 days – the prime consolidation target.

Memory is the constraint that bites: a CPU-dense target platform can run out of RAM long before it runs out of cores. Size the target by memory first, then verify CPU headroom.

Step 2 – Density Math on the Target Platform

Step 3 – The 5-Year TCO Statement

Using the fleet above, at $0.12/kWh and 8,760 hours a year:

• Power: legacy 4.5 kW x 8760 x 5 = ~197,100 kWh (~$23,650); target 1.4 kW = ~61,300 kWh (~$7,360). Saving: ~$16,300 over 5 years.
• vSphere licensing: CPU-socket licenses drop from 20 sockets to 6 – typically the single largest saving on modern licensing.
• Patching and admin: 10 nodes to 3 nodes – roughly a 70% cut in patch windows, firmware cycles and rack cabling.
• Cooling: power saved is cooling saved; budget a further 0.5-0.9 kW of heat removal per kW removed.

Total 5-year saving for this example lands between $35k and $70k depending on licensing – before counting the freed rack space that delays the next data center expansion.

When NOT to Consolidate

Migration Plan: 10-to-3 in Four Weeks

1. Week 1: vMotion test VMs to the first R670; validate CPU steal, memory pressure and latency targets.
2. Week 2: move batch/static workloads (non-critical first); keep the last legacy node as a staging target.
3. Week 3: move databases on a maintenance window with rollback snapshots; use the R670’s DDR5 6400 MT/s and E3.S Gen5 NVMe for IO-bound guests.
4. Week 4: decommission legacy nodes in waves – verify backups, wipe storage, reclaim rack space and power.

Rollback is simple if the cluster keeps one legacy node online until the cut-over window closes.

Memory Constraint Deep Dive: Why RAM Decides the Ratio

Server consolidation fails most often on memory. A 172-core target node looks enormous until the fleet’s Java services and database caches demand 700GB of working set. Plan memory with three numbers:

• Aggregate guest memory: sum of VM memory reservations plus average usage – not configured size. vCenter metrics give you the honest number; configured sizes over-provision by 30-50%.
• Overcommit ratio: virtualization platforms commonly overcommit CPU 4-8x but memory only 1.2-1.5x. Plan memory as if it cannot be overcommitted.
• Slot strategy: R670/R770 have 32 DDR5 slots. 1DPC (16x 128GB = 2TB) runs at full 6400 MT/s; 2DPC doubles capacity but drops speed. For consolidation, capacity wins – 2TB per node at 5600-class speed is the better trade for mixed fleets.

If aggregate guest memory exceeds 4TB per node, step up to the 4-socket R860/R960 class (64 DDR5 slots, 16TB) instead of squeezing more VMs onto a 2-socket node.

Consolidation Risks and Mitigations

Consolidation FAQ

• How many VMs per R670? Rule of thumb: 15-25 typical VMs per node for CPU-light fleets, fewer for memory-heavy ones – size by memory, not by count.
• Does consolidation affect DR? Yes – fewer hosts means fewer replication targets; re-validate DR runbooks and replica sizing after the move.
• Is consolidation safe for production databases? Yes, with a window: snapshot, migrate, validate latency and rollback scripts, then cut over – DDR5 6400 MT/s and NVMe usually make the database faster, not slower.
• Can we mix 1U and 2U targets? Yes; 2U targets (R760/R770) make sense for IO-heavy and GPU-assisted workloads, 1U for everything else – consolidation is a fleet-level ratio, not a single form factor.

Acceptance Checklist: How You Know Consolidation Worked

• CPU steal below 3% on every target node during batch peaks – above that, the ratio was too aggressive.
• Memory ballooning near zero: no guest swap or balloon for 30 days after the final wave.
• Application latency at or below legacy baseline – faster is common with DDR5 6400 MT/s and Gen5 NVMe, never slower.
• Power drop confirmed at the PDU: measure before and after at the breaker, not the label – the fleet should draw roughly a third of the pre-migration power.
• Documented rollback: every migration wave has a dated rollback entry that was actually rehearsed.

Once the numbers pass, the physical move is the easy part – the hard work was the profiling and the sizing. Consolidation done right is invisible: the same workloads, a third of the hardware, and a TCO statement the CFO can sign.

Choosing the Target Platform

• General virtualization: R670 – 2x Xeon 6, 32 DDR5 slots, 8-20x E3.S Gen5, 2x OCP NIC 3.0.
• Database/VDI: R760 – 2x Xeon 4th/5th, 32 DDR5 5600 MT/s, 24x NVMe U.2.

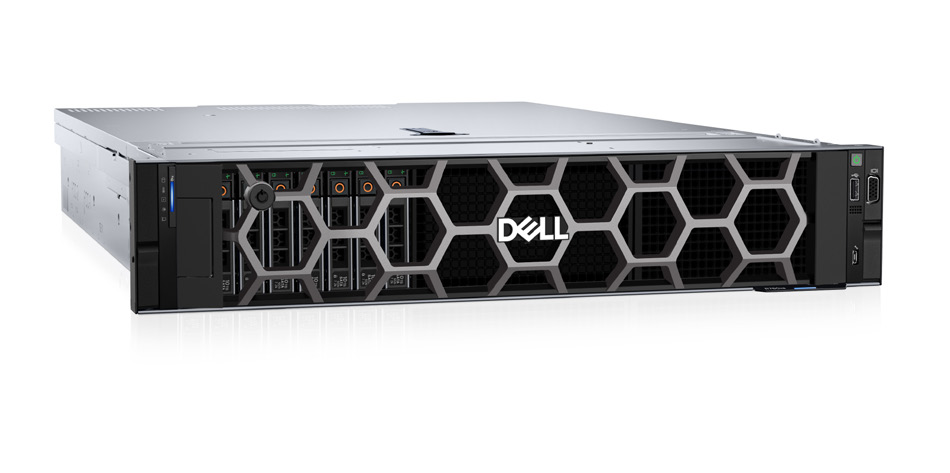

• IO-heavy storage workloads: R760XS class – NVMe-optimized bay layout.
• Memory-scale consolidation: R860/R960 – 4 sockets, 64 DDR5 slots, up to 16TB.
