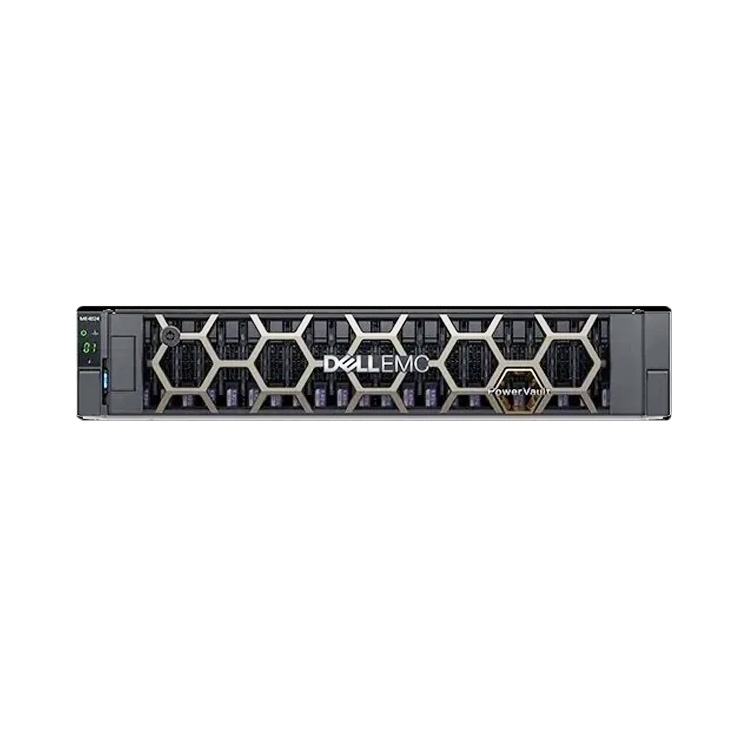

Original Brand New Dells PowerVault MD2412 MD2424 MD2460 Direct-Attached Storage DAS JBOD Enclosures Storage Server

	MD2412	MD2424
Rack	2U	2U	4U
Drive bays	12 x 3.5” (14G/15G/16G)	24 x 2.5” (14G/15G/16G)	60 x 3.5” (Chassis specific)
Max. drive count	Up to 96 for HBA355e Up to 48 for H840 PERC Up to 96 for HBA355e	Up to 96 for HBA355e Up to 96 for H840 PERC Up to 96 for HBA355e	Up to 120 for HBA355e Up to 120 for H840 PERC Up to 120 for HBA355e
PERC support	Yes	Yes	Yes
Max. enclosures	8 (with HBA355e) 4 (with H840 PERC) 8 (with HBA355e)	4 (with HBA355e) 4 (with H840 PERC) 4 (with HBA355e)	2 (with HBA355e) 2 (with H840 PERC) 2 (with HBA355e)
Max capacity	1.92PB (20TB HDD)	230.40TB (2.4TB 10K) 737.28TB (7.68TB SSD)	2.40PB (20TB HDD)
Storage media	7.2K SAS/FIPS 3.5” drives − 20TB; 16TB; 12TB; 8TB; 4TB − FIPS: 8TB	10K SAS/FIPS 2.5” drives − 2.4TB; 1.2TB; 600GB − FIPS: 2.4TB, 1.2TB SAS SSD/FIPS 2.5” (mixed use) − 1.6TB; 800GB − FIPS: 3.84TB; 1.92TB, 960GB SAS SSD/FIPS 2.5” (Read Intensive) − 7.68TB; 3.84TB; 1.92TB − FIPS: 7.68TB; 3.84TB; 1.92TB	7.2K SAS/FIPS 3.5” drives − 20TB; 16TB; 12TB; 8TB; 4TB − FIPS: 8TB
Host interface	12Gb/24Gb SAS	12Gb/24Gb SAS	12Gb/24Gb SAS
I/O & Ports	2x 4-lane 24Gbps SAS host connect per EMM (MD2412, MD2424) 4x 4-lane 24Gbps SAS host connect per EMM (MD2460) 1x USB-C debug ports per EMM	2x 4-lane 24Gbps SAS host connect per EMM (MD2412, MD2424) 4x 4-lane 24Gbps SAS host connect per EMM (MD2460) 1x USB-C debug ports per EMM	2x 4-lane 24Gbps SAS host connect per EMM (MD2412, MD2424) 4x 4-lane 24Gbps SAS host connect per EMM (MD2460) 1x USB-C debug ports per EMM
Expansion protocol	24Gb SAS4	24Gb SAS43	24Gb SAS4
Supported	All-Flash, Hybrid Flash (10K HDD only (MD2424); 7.2K HDD only (MD2412, MD2460)	All-Flash, Hybrid Flash (10K HDD only (MD2424); 7.2K HDD only (MD2412, MD2460)	All-Flash, Hybrid Flash (10K HDD only (MD2424); 7.2K HDD only (MD2412, MD2460)
Management	Enclosure Management Modules (EMM) 2 HA EMM per enclosure provide redundant enclosure management capability with iDRAC or SHMCLI	Enclosure Management Modules (EMM) 2 HA EMM per enclosure provide redundant enclosure management capability with iDRAC or SHMCLI	Enclosure Management Modules (EMM) 2 HA EMM per enclosure provide redundant enclosure management capability with iDRAC or SHMCLI
PowerEdge servers	14G/15G servers; R760, R660, R7625, R6625, R7615, R6615 servers	14G/15G servers; R760, R660, R7625, R6625, R7615, R6615 servers	14G/15G servers; R760, R660, R7625, R6625, R7615, R6615 servers
Wattage	800W	800W	1500W
Voltage	MD2412: 100-127/200-240 VAC; 240 VDC (China only)	MD2424: 100-127/200-240 VAC; 240 VDC (China only)	MD2460: 200-240 VAC; 240 VDC (China only)
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
