Management support
|
PowerVault Manager HTML5 GUI element manager, CLI, OpenManage Enterprise
|
|
VMware vCente
|
VMware vCenter plugin to manage ME5 arrays through vCenter.
|
|
Scripting
|
CLI API Redfish/Swordfish REST API
|
|
Supported host OS
|
Windows 2025 (including Hyper-V), Windows 2022 (including Hyper-V) RHEL 9.5, 8.10 SLES 15 SLES 15 SP6, SLES 12 SP 8 VMware 9.0,
VMware 8.0 U3 |
|
Virtualization integration
|
VMware vSphere (ESXi) vCenter; SRM Microsoft Hyper-V
|
|
Rack size
|
ME5212 (2U), ME5224 (2U), ME5284 (5U)
|
|
Base system height
|
ME5212: 8.79 cm (3.46 inches) ME5224: 8.79 cm (3.46 inches)
ME5284: 22.23 cm (8.75 inches)
|
|
Base system width
|
ME5212: 48.30 cm (19.01 inches) ME5224: 48.30 cm (19.01 inches)
ME5284: 48.30 cm (19.01 inches)
|
|
Base system depth
|
ME5212: 61.87mm (24.36 inches) ME5224: 54.78mm (21.56 inches)
ME5284: 981mm (38.62 inches)
|
|
Weight (max configuration)
|
ME5212: 32.00 kg (71.00 lbs) ME5224: 30.00 kg (66.00 lbs)
ME5284: 135.00 kg (298.00 lbs)
|
|
Weight (empty)
|
ME5212: 4.80 kg (10.56 lbs) without drives ME5224: 4.80 kg (10.56 lbs) without drives
ME5284: 64.00 kg (141.00 lbs) without drives
|
|
Rack size
|
ME512 (2U), ME524 (2U), ME584 (5U)
|
|
Expansion height
|
ME512: 8.79 cm (3.46 inches) ME524: 8.79 cm (3.46 inches)
ME584: 22.23 cm (8.75 inches)
|
|
Expansion width
|
ME512: 48.30 cm (19.01 inches) ME524: 48.30 cm (19.01 inches)
ME584: 48.30 cm (19.01 inches)
|
|
Expansion depth
|
ME512: 60.29 cm (23.74 inches) ME524: 60.29 cm (23.74 inches)
ME584: 97.47 cm (38.31 inches)
|
|
Weight (max configuration)
|
ME512: 28.00 kg (62.00 lbs) ME524: 25.00 kg (55.00 lbs)
ME584: 130.00 kg (287.00 lbs)
|
|
Weight (empty)
|
ME512: 4.80 kg (10.56 lbs) without drives ME524: 4.80 kg (10.56 lbs) without drives
ME584: 64.00 kg (141.00 lbs) without drives
|
|
Power/wattage
|
ME5212: 580W, 764W DC ME5224: 580W, 764W DC
ME5284: 2200W
|
|
Heat dissipation
|
ME5212: 1980 BTU ME5224: 1980 BTU
ME5284: 7507 BTU
|
|
Voltage
|
ME512: 100-240 VAC ME524: 100-240 VAC
ME584: 200-240 VAC
|
|
Frequency
|
50/60 Hz
|
|
Amperage
|
ME512: 7.6-3.0A (x2) ME524: 7.6-3.0A (x2)
ME584: 11.07-9.23A(x2)
|
|
Operating temperature
|
5°C – 35°C (41°F – 95°F, derated by 1°C per 300mm above 900m)
|
|
Non-operating temperature
|
-40°C to 70°C (-40 to 158°F) Maximum temperature changes in an hour: 20°C
|
|
Operating humidity ranges (non-condensing)
|
-12C dew point minimum, 8% to 85% maximum, non-condensing
|
|
Non-operating humidity (non- condensing)
|
21°C dew point maximum, 5% to 100% maximum, non-condensing
|

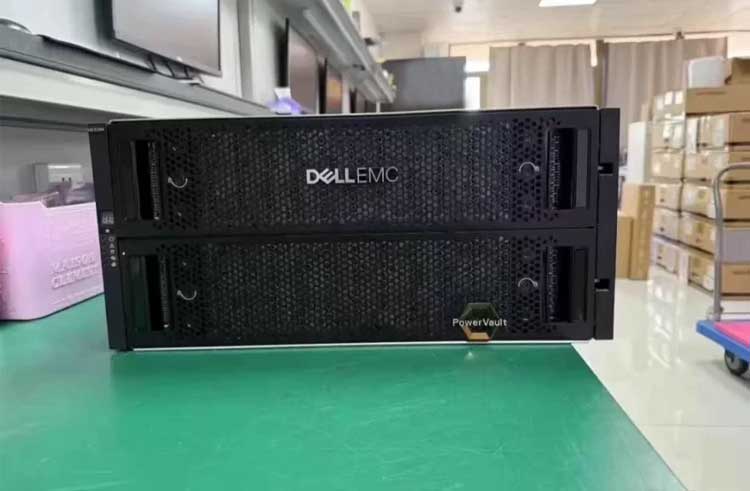

Stock 2U/5U Dells EMC PowerVault ME5012 ME5024 ME5084 ME5212 ME5224 ME5284 Hard Driver Network Data Storage Server
