The Switch Your 25GbE Servers Are Waiting For

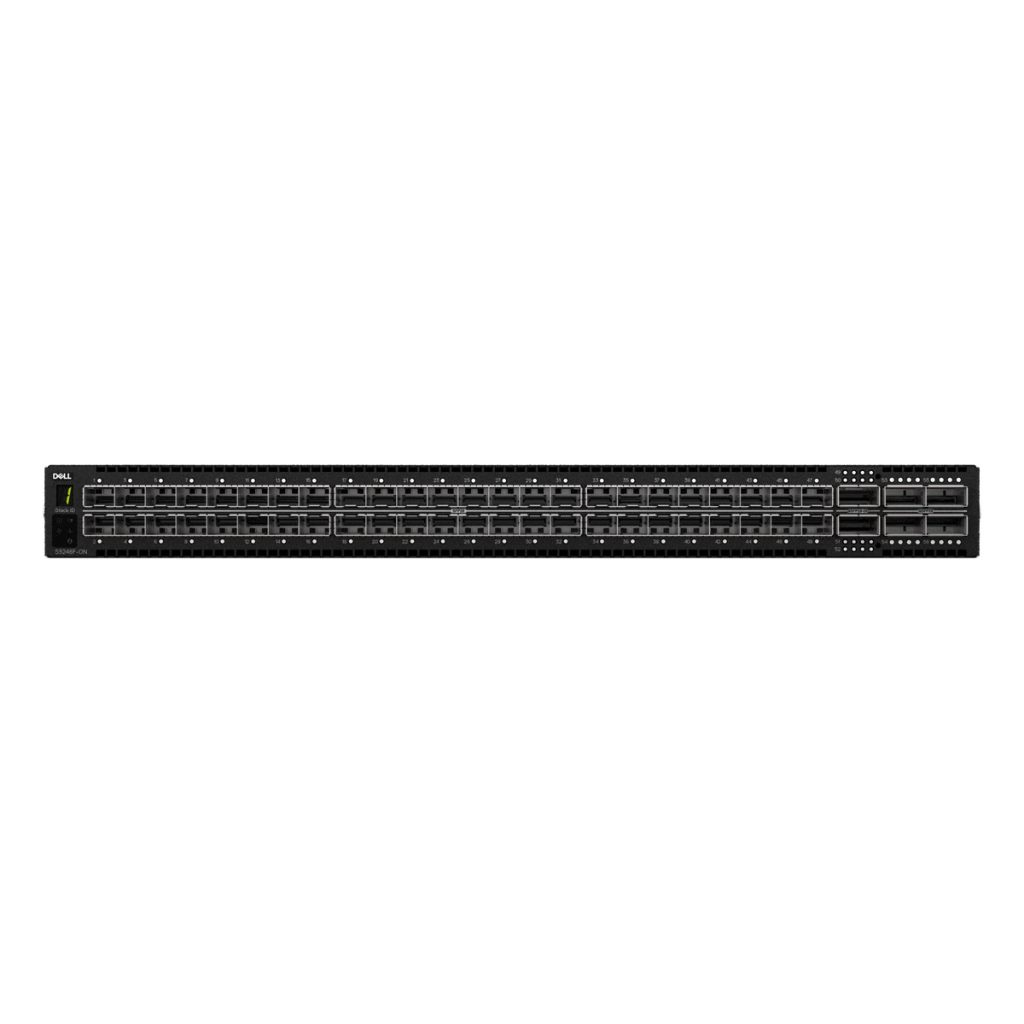

You upgraded your servers to 25GbE NICs six months ago. The NICs are installed. The SFP28 transceivers are in a drawer. The servers are still plugged into 10GbE because the switch budget was cut in the same meeting that approved the NICs. The Dell PowerSwitch S5248F-ON is the missing piece: a 48-port 25GbE switch with 8x 100GbE uplinks, running Dell OS10 Enterprise Edition, at a price point that fits in the same budget cycle as the NICs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Dell EMC PowerSwitch S5248F-ON |
| Ports | 48x SFP28 (25GbE) + 8x QSFP28 (100GbE) + 2x SFP+ (10GbE management) |
| Switching Capacity | 3.2 Tbps (full-duplex) |
| Forwarding Rate | 2.4 Bpps (billion packets per second) |
| Latency | < 600 ns (cut-through, port-to-port) |
| Jumbo Frames | Up to 9,216 bytes |
| Packet Buffer | 32 MB shared buffer pool (dynamic allocation) |
| MAC Address Table | 272,000 entries |
| ARP Table | 64,000 entries |
| VLANs | 4,094 active VLANs (VLAN ID 1-4094) |
| Routing | Static, OSPFv2/v3, BGPv4/v6, VRF, VRRP, ECMP (64-way) |
| VXLAN | VXLAN bridging and routing (L2/L3 gateway), NVGRE |
| QoS | 802.1p CoS, DSCP, PFC (Priority Flow Control), ETS, DCBX |
| Automation | REST API, Ansible, Puppet, Chef, SaltStack, Python scripting (on-box), gRPC/gNMI |
| Telemetry | Streaming telemetry (gRPC, GPB), sFlow, SNMP v2/v3 |
| OS | Dell OS10 Enterprise Edition (Debian Linux-based, unmodified Linux kernel) |
| Form Factor | 1U rack-mount, front-to-back or back-to-front airflow (reversible) |
| Power Supplies | 2x 550W AC, 1+1 redundant, hot-swappable, Platinum efficiency, PSU-side airflow |
| Fans | 4x hot-swappable, N+1 redundant, variable speed |
| Physical | 434 x 460 x 44 mm (1U), 9.8 kg |
| Temperature | 0C to 45C |
| Warranty | 3-year (Dell ProSupport, NBD parts replacement) |
The OS10 Difference — Why It Matters for Automation
Dell OS10 is built on an unmodified Debian Linux kernel. Unlike proprietary switch OSes that lock you into a CLI or a limited REST API, OS10 allows you to install standard Linux packages directly on the switch. Run Python scripts on the switch CPU. Install Ansible, Salt, or Puppet agents natively. Pipe switch telemetry into your existing monitoring stack without an intermediate collector. For network teams that have adopted infrastructure-as-code for server management, OS10 brings the same paradigm to the switch — no separate network automation platform required.
S5248F-ON in a 3-Tier Data Center Architecture
| Layer | Role | Recommended Switch | Ports Used |
|---|---|---|---|
| Server Access / ToR | Connects 25GbE servers to fabric | S5248F-ON (this switch) | 48x 25GbE to servers, 8x 100GbE to spine |
| Spine / Leaf-Spine | Interconnects ToR switches | Dell S5232F-ON (32x 100GbE) | 32x 100GbE, connecting up to 16 S5248F-ON ToR switches |
| Border / DC Interconnect | Connects DC to WAN or second site | Dell S5296F-ON (96x 25GbE + 8x 100GbE) | Dense 25GbE aggregation + 100GbE uplink |
Compatible Transceivers and Cables
25GbE ports accept SFP28 transceivers (SR 100m, LR 10km) or SFP28 passive DAC cables (1m-5m). 100GbE ports accept QSFP28 transceivers (SR4 100m, LR4 10km) or QSFP28 passive DAC cables (1m-5m). Dell-branded, Intel, Finisar, and FS.com optics all supported — Dell OS10 does not enforce vendor-locked transceivers.
Source Through Xincuan
We supply PowerSwitch S5248F-ON with factory-direct pricing, 3-year ProSupport warranty, and global shipping. Our engineers can help design your leaf-spine topology and configure OS10 automation.
