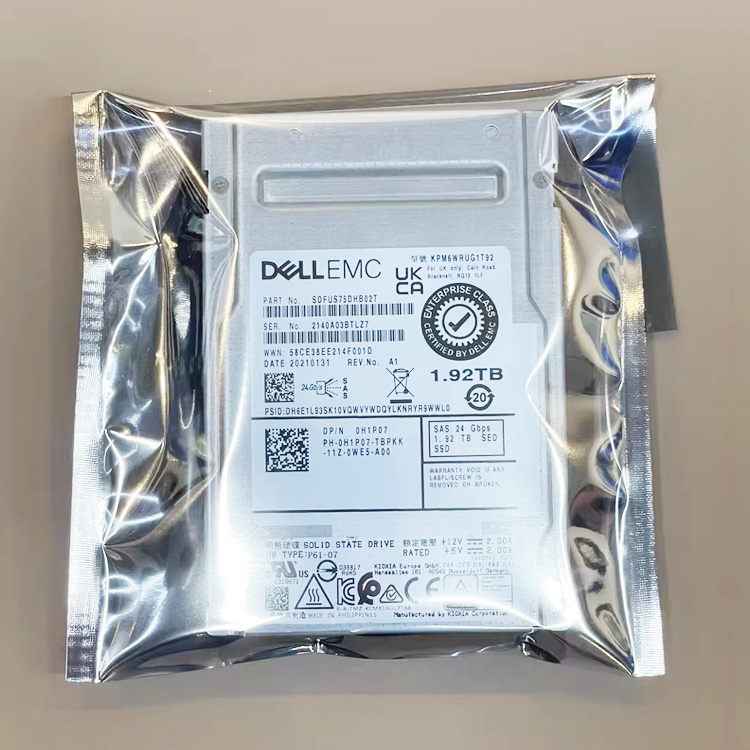

DELL EMC 0H1P07 1.92TB SAS 24Gbps Enterprise Solid State Drive, model KPM6WRUG1T92, 2.5-inch SAS interface, used for server storage R740, ME4

Description

Dell H1P07 / Kioxia KPM6WRUG1T92 1.92TB 2.5″ SFF 24Gbps Read Intensive 1-DWPD BICS Flash TLC SAS SED / FIPS Self Encrypting SSD – Brand New

PM6-R Series SSDs – Enterprise Read Intensive

PM6-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA Corporation’s 96-layer BiCS FLASH 3D flash menory, this 6th generation enterprise SAS SSD PM6-R Series offeres 1-DWPC (Dreive Writes Per Day)

KEY Features

24G SAS interface with single/dual-port support
Capacities from 960GB to 30.72 TB
T10 Multi-Stream Write support
Up to 595K random read IOPS (4 KiB) in dual-port mode
2.5″ form factory 15mm height
1 DWPD with 100% Random Write Workload
Power-Loss-Protection and End-to-End Data Protection, Including T10 DIF
Pin-3 Power Disable Support
Sanitize Instant Erase (SIE) option
Self Encrypting (SED & SED FIPS 140-2) options

DPN: H1P07 / 0H1P07

MPN: SDFUS75DHB02T

Compatibility

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Specifications

Enterprise Read Intensive SSD
KIOXIA KPM6WRUG1T92 / Dell 1.92TB 24Gb/s SAS SSD
Model Number	KPM6WRUG1T92
Interface	SAS-4.0
Interface Speed	22.5 Gbit/s ,12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory Type	BiCS FLASH TLC
Formatted Capacity	1.92TB
Sustained 128 KiB Sequential Read	4,150 MiB/s
Sustained 128 KiB Sequential Write	2,700 MiB/s
Sustained 4KiB Random Read	595,000 IOPS
Sustained 4KiB Random Write	115,000 IOPS
MTTF	2,500,000 hours
DWPD	1
Supply Voltage	5 V ±7 % , 12 V ±7 %
Power Consumption (Operating)	5.0W Typ.
Height	15.0 mm +0 , -0.5 mm
Width	69.85 ±0.25 mm
Length	100.45 mm Max.
Weight	130 g Max.
Temperature (Operating)	0 to 70 °C
Relative Humidity ( Operating )	5 to 95 % R.H.
Vibration (Operating)	21.27 m/s {2.17 Grms} (5 to 800 Hz)
Shock (Operating)	9.8 km/s {1,000 G} (0.5 msec)
