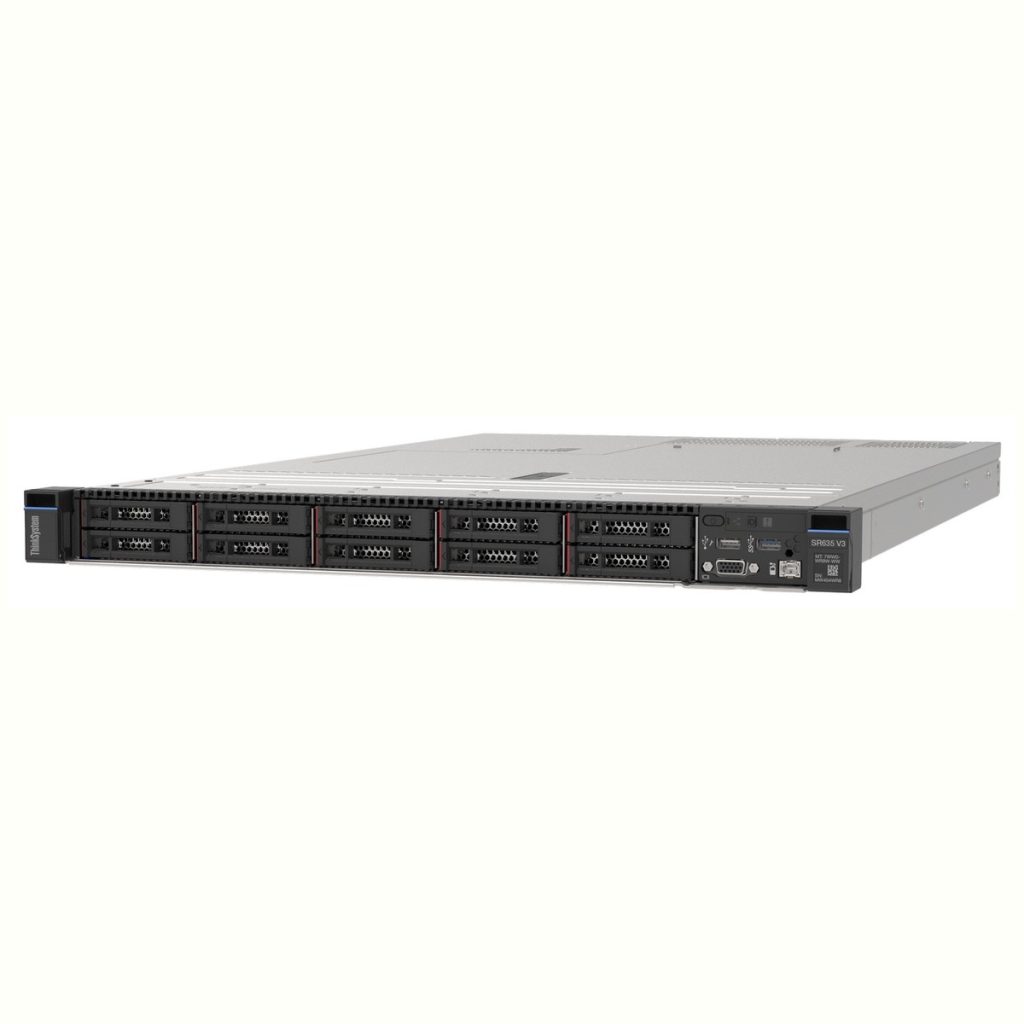

ThinkSystem SR635 V3

Tech Specs

Form Factor / Depth	1U rack / 778mm (30.6”)
Processor	One 4^th Generation AMD EPYC™ Processors or 5^th Generation AMD EPYC™ Processors
Memory	12x TruDDR5 DIMM slots (1DPC) Maximum 1.5TB using 128GB 3DS RDIMMs Up to 1DPC at 6400MHz
Drive Bays	Up to 12x 2.5″ hot-swap drive bays (hot-swap combinations – SAS/SATA, NVMe, or AnyBay™) Up to 16x EDSFF Boot Drives: 2x 7mm drives at the rear Internal M.2 module supporting up to two M.2 drives
GPU Support	Up to 4x single-width GPUs
RAID Support	Hardware RAID HBAs
Power Supply	Dual Redundant AC & DC supplies with Titanium/Platinum (ErP Lot9 Compliance)
Network Interface	OCP 3.0 mezz adapter; 1GbE Dedicated Management, optional 2nd port using OCP slot
Slots	Up to 5x PCIe 4.0 slots, up to 2x PCIe 5.0 slots; Up to 64x lanes via onboard NVMe connectors
Ports	Front: Front operator panel or Integrated diagnostic panel USB 3.1 (USB 10 Gbps) USB 2.0 with XCC connection for mobile device Optional: External Diagnostic Handset via external diagnostic port Optional: VGA port Rear: 3x USB 3.1 ports (USB 10 Gbps) VGA port System ID LED Error LED NMI button Optional: Serial (COM) port
Systems Management	ThinkSystem XClarity Controller (based on AST2600) Optional: Root of Trust (RoT) module with TPM 2.0
Operating Systems	Microsoft Windows Server SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere
Limited Warranty	1- and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
Datasheet	Lenovopress.com/ds0149
