Description

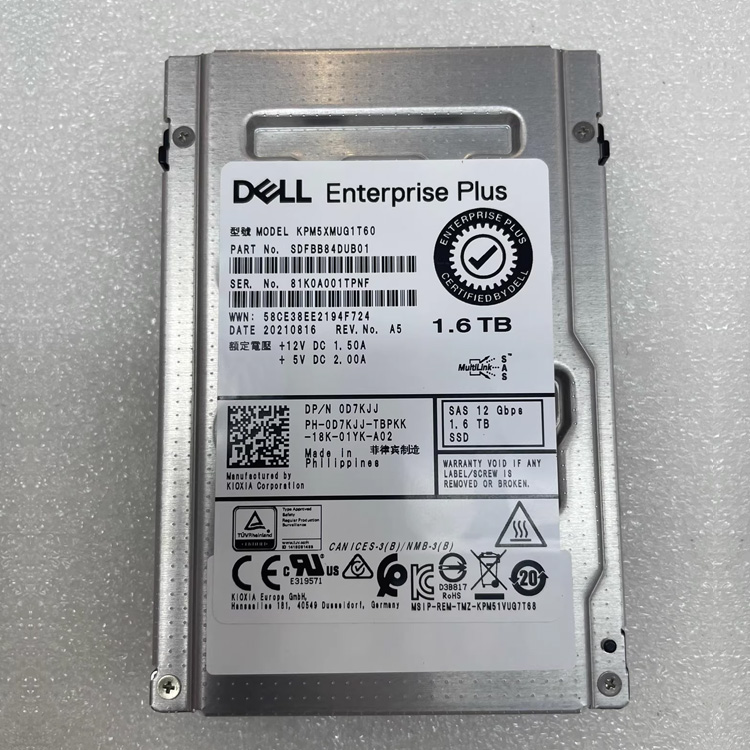

Dell KPM5XMUG1T60 1.6TB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD – Brand New
Dell D7KJJ KPM5XMUG1T60 1.6TB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD – Brand New
PM5-M Series – Enterprise Write Intensive SSD
PM5-M 12.0 Gbit/s SAS SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The Series is designed to deliver high levels of performance, quality and reliability for mission-critical, hyperscale and virtualized environments. Featuring Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD PM5-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 10 DWPD (Drive Write Per Day) with capacities up to 3.2 TB.
Key Features:
- 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
- Capacities from 400GB to 3.2TB
- T10 Multi-Stream Write support
- Up to 385 K random read IOPS (4 KiB) in dual port mode
- 2.5 inch form factor, 15 mm Z-height
- 10 DWPD with 100 % Random Write Workload
- Power loss protection and end-to-end data protection, including T10 DIF Pin-3 power disable support
- Sanitize Instant Erase (SIE) option
Key Applications
- Mission critical enterprise workloads Hyperscale and virtualized environments
- Online transaction processing (OLTP)
- E-commerce
Compatibility
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Model Number | KPM5XMUG1T60 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH TLC |
| Formatted Capacity | 1.6TB |
| Sustained 64KiB Sequential Read | 2,100 MiB/s |
| Sustained 64KiB Sequential Write | 2,100 MiB/s |
| Sustained 4KiB Random Read | 370,000 IOPS |
| Sustained 4KiB Random Write (in dual port mode) | 230,000 IOPS |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 10 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Operating) | 5.0W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Enviromental | |
| Temperature (Operating) | 0 to 60 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
