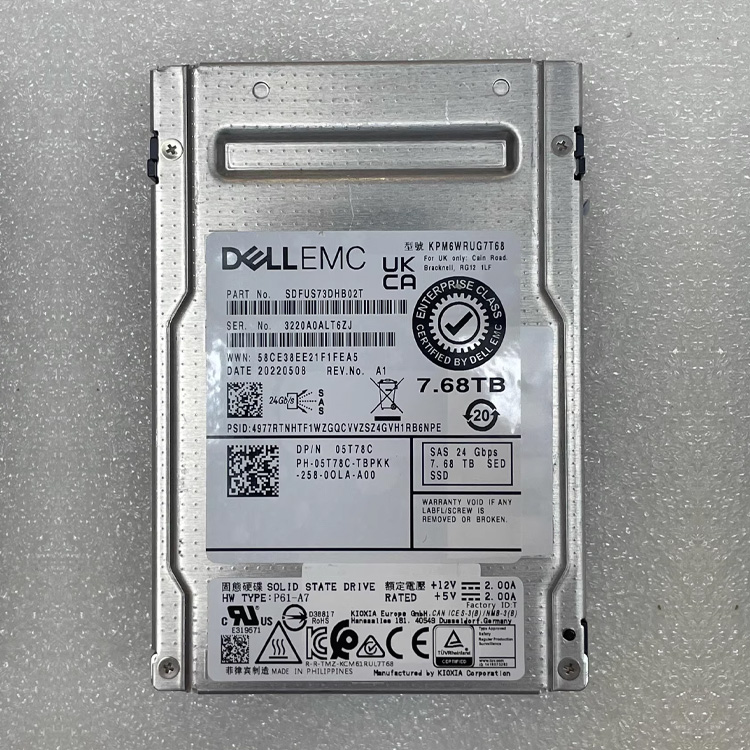

Dell 5T78C / KPM6WRUG7T68 7.68TB 2.5 SFF 24Gbps Read Intensive 1-DWPD BICS Flash TLC SAS SED / FIPS 140-2 Encrypted SSD – Brand New
PM6-R Series SSDs – Enterprise Read Intensive
PM6-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring Corporation’s 96-layer BiCS FLASH 3D flash menory, this 6th generation enterprise SAS SSD PM6-R Series offeres 1-DWPC (Dreive Writes Per Day)
KEY Features
- 24G SAS interface with single/dual-port support
- Capacities from 960GB to 30.72 TB
- T10 Multi-Stream Write support
- Up to 595K random read IOPS (4 KiB) in dual-port mode
- 2.5 form factory 15mm height
- 1 DWPD with 100% Random Write Workload
- Power-Loss-Protection and End-to-End Data Protection, Including T10 DIF
- Pin-3 Power Disable Support
- Sanitize Instant Erase (SIE) option
- Self Encrypting (SED & SED FIPS 140-2) options
DPN: 5T78C
MPN: SDFUS73DHB02T
KIO-KPM6WRUG7T68-BN-OE-DEL
Alternate Part Numbers: 5T78C 05T78C SDFUS73DHB02T
| Enterprise Read Intensive SSD | |
|---|---|
| Basic Specifications | |
| Reliability | |
| Power Requirements | |
| Dimensions | |
| Enviromental | |
| Model Number | KPM6WRUG7T68 |
| Interface | SAS-4.0 |
| Interface Speed | 22.5 Gbit/s ,12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH TLC |
| Formatted Capacity | 7.68TB |
| Sustained 128 KiB Sequential Read | 4,150 MiB/s |
| Sustained 128 KiB Sequential Write | 3,750 MiB/s |
| Sustained 4KiB Random Read | 595,000 IOPS |
| Sustained 4KiB Random Write | 115,000 IOPS |
| MTTF | 2,500,000 hours |
| DWPD | 1 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Operating) | 5.0W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Temperature (Operating) | 0 to 70 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Dell 5T78C / Kioxia KPM6WRUG7T68 7.68TB SFF 24Gbps Read Intensive 1-DWPD BICS Flash TLC SAS SED / FIPS 140-2 Encrypted SSD – Brand New
Dell 5T78C / Kioxia KPM6WRUG7T68 7.68TB 2.5″ SFF 24Gbps Read Intensive 1-DWPD BICS Flash TLC SAS SED / FIPS 140-2 Encrypted SSD – Brand New
PM6-R Series SSDs – Enterprise Read Intensive
PM6-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASH 3D flash menory, this 6th generation enterprise SAS SSD PM6-R Series offeres 1-DWPC (Dreive Writes Per Day)
KEY Features
- 24G SAS interface with single/dual-port support
- Capacities from 960GB to 30.72 TB
- T10 Multi-Stream Write support
- Up to 595K random read IOPS (4 KiB) in dual-port mode
- 2.5″ form factory 15mm height
- 1 DWPD with 100% Random Write Workload
- Power-Loss-Protection and End-to-End Data Protection, Including T10 DIF
- Pin-3 Power Disable Support
- Sanitize Instant Erase (SIE) option
- Self Encrypting (SED & SED FIPS 140-2) options
DPN: 5T78C
MPN: SDFUS73DHB02T
