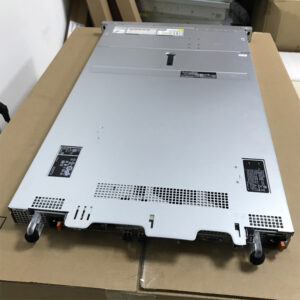

Low-Power 1U 2-Socket Dell EMC PowerEdge R660 Cloud Rack Server with Intel Xeon Platinum/Gold/Sliver/Bronze Processors/64G Ram/750W Power

Model	Poweredge R660XS	Poweredge R660
Appearance Specifications	1U Rack Server	1U Rack Server
processor	Up to two 5th generation Intel Xeon Scalable processors (up to 28 cores) and 4th generation Intel Xeon Scalable processors (up to 32 cores per processor)	Up to two fourth generation Intel Xeon Scalable processors
Memory	16 DDR5 DIMM slots, supporting up to 1.5 TB RDIMM and speeds up to 5200 MT/s, only compatible with registered ECC DDR5 DIMMs	32 个 DDR5 DIMM，up to 4800 MT/s
Storage Drive	Front bracket: • 0 drive bays Up to 4 x 3.5 inches SAS/SATA (HDD/SSD), maximum 80 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 122.88 TB Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 153.6 TB Back bracket: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 15.2 TB	Front tray: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 153.6 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 122.88 TB Rear rack: Up to 2 2.5-inch SAS/SATA/NVMe, up to 30.72 TB
Memory Controller	Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swappable) or USB External HBA (non RAID): HBA355e • Software RAID: S160	• Internal controller (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drive or USB External HBA (non RAID): HBA355e • Software RAID: S160
PCIe slot	Single CPU configuration: up to 2 PCIe slots (1 x16 4.0+1 x8 5.0) Dual CPU configuration: up to 3 PCIe 4.0 slots (1 x16 4.0+2 x8 4.0) or up to 2 PCIe 5.0 slots (1 x16 5.0+1 x8 5.0)	Up to three PCIe slots: Slot 1:1 x 16 5th generation full height, 3/4 length, half length; Or 1 x8/1 x16 5th generation; Or 1 x16 4th generation half height, half length Slot 2:1 x16 5th generation full height, 3/4 length, half length; Or 1 x16 5th generation; Or 1 x16 4th generation half height, half length Slot ratio of 3:1 x 8/1 x 16, 5th generation; Or 1 x16 4th generation half height, half length
Power	1800 W titanium grade 200-240 VAC or 240 VDC 1400 W Platinum 100-240 VAC or 240 VDC 1400 W Titanium Grade 277 VAC or HVDC (HVDC stands for High Voltage DC with 336V) DC） 1100 W titanium grade 100-240 VAC or 240 VDC • 1100 W -(48V — 60V) DC 800 W Platinum 100-240 VAC or 240 VDC 700 W titanium grade 200-240 VAC or 240 VDC 600 W Platinum 100-240 VAC or 240 VDC	1800 W titanium grade 200-240 VAC or 240 HVDC, hot swappable, fully redundant 1400 W Platinum 100-240 VAC or 240 HVDC, hot swappable, fully redundant 1100 W titanium grade 100-240 VAC or 240 HVDC, hot swappable, fully redundant 1100 W LVDC-48 to -60 VDC, hot swappable, fully redundant 800 W Platinum 100-240 VAC or 240 HVDC, hot swappable, fully redundant 700 W titanium grade 200-240 VAC or 240 HVDC, hot swappable, fully redundant
Baffle	Optional LCD screen panel or safety panel	Optional LCD screen panel or safety panel
OpenManage software	CloudIQ for PowerEdge plugin • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service Plugin OpenManage Update Manager plugin	• OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service Plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plugins • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules Terraform provider • VMware vCenter and vRealize Operations Manager	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform 提供程序 • VMware vCenter and Realize Operations Manager
Cooling options	Air cooling	• Air cooling • Optional Direct Liquid Cooling (DLC)
Fan	Standard (STD) fans/High Performance Gold (VHP) fans, up to 7 hot swappable fans	Standard (STD) Fan/High Performance (VHP) Gold Medal Fan Up to four sets (dual fan modules) of hot swappable fans
GPU		Up to 2 * x 75 W SW
System management	• iDRAC9 • iDRAC Direct IDRAC RESTful API with Redfish • iDRAC Service Module Quick Sync 2 wireless module	• iDRAC9 • iDRAC Direct • IDRAC RESTful API with Redfish • iDRAC Service Module •Quick Sync 2 wireless module
Safety	Encryption signature firmware Static data encryption (SED with local or external key management) • Safe startup • Secure erasure Security component verification (hardware integrity check) • Silicon wafer trust root System lockout (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certification, TPM 2.0 China NationZ	Encryption signature firmware Static data encryption (SED with local or external key management) • Safe startup • Secure erasure Security component verification (hardware integrity check) • Silicon wafer trust root System lockout (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certification, TPM 2.0 China NationZ
Embedded NIC	2 1 GbE LOM cards	2 1 GbE LOM cards
Operating system and virtual machine management program	Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux • SUSE Linux Enterprise Server。 • VMWare ESXi • Canonical UbuntuServer LTS	• Canonical Ubuntu Server LTS • With Hyper-V Microsoft Windows Server • Red Hat Enterprise Linux • SUSE Linux Enterprise Server •VMware ESX
