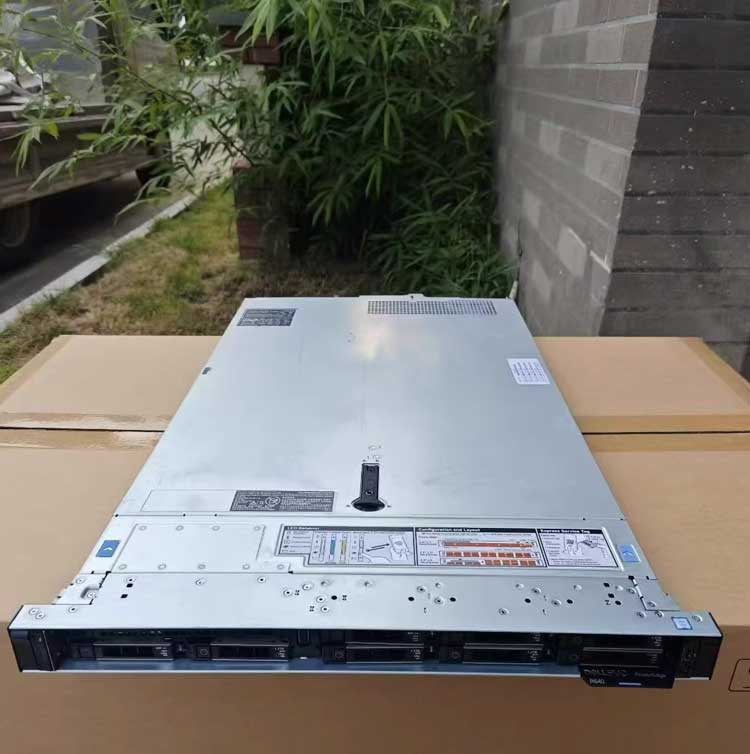

Dells EMC PowerEdge R640 Virtual Machine Multiple 0pen 1U Rack Server with Intel Xeon 3100/4100/5100/6100/8100 Series CPU/DDR4

The PowerEdge R640 is an ideal dual slot 1U platform suitable for high-density horizontal expansion data center computing. R640 combines high density, high performance, and high scalability to optimize application performance and data center density..

The scalable enterprise architecture of R640 aims to maximize its capabilities Utilize program performance and support flexible optimization based on application and usage scenarios Modernize configuration. With R640, you can create NVMe cache pools and Use 2.5-inch or 3.5-inch drives for data storage. use in combination Up to 24 DIMMs (12 of which can be NVDIMMs), you There are resources to create optimized configurations to maximize application performance Yes, and optimized configuration can be achieved in just one 1U chassis.

Product Name	PowerEdge R640 Server
Processors	Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor
Memory	DIMM Speed Up to 2933MT/s Memory Type RDIMM LRDIMM NVDIMM DCPMM (Intel® Optane™ DC persistent memory) Memory Module Slots 24 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only) Supports registered ECC DDR4 DIMMs only Maximum RAM RDIMM 1.53TB LRDIMM 3TB NVDIMM 192GB DCPMM 6.14TB (7.68TB with LRDIMM)
Drive bays	Front Bays Up to 10 x 2.5” with up to 8 NVMe, SAS/SATA/SSD/NVMe, max 76.8TB Up to 10 NVMe, max 64TB Up to 4 x 3.5” SAS/SATA, max 56TB Rear Bays Up to 2 x 2.5” SAS/SATA/SSD/NVMe, max 15.36TB
Storage controllers	Storage Controllers Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers 12Gbps SAS HBA Software RAID S140 Internal Boot Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480 GB Internal Dual SD Module
Power supplies	495W Platinum 750W Platinum 750W 240HVDC Platinum* 1100W 48VDC 1100W Platinum 1100W 380HVDC Platinum* 1600W Platinum 750W Titanium Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy
I/O and Ports	PCIe 3 x Gen3 slots (all x16) Video Card 1 x VGA Network Options 4 x 1GbE 2 x 10GbE + 2 x 1GbE 4 x 10GbE 2 x 25GbE Front Ports 1 x Dedicated iDRAC direct USB 1 x USB 2.0 1 x USB 3.0 (optional) 1 x Video Rear Ports 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video
