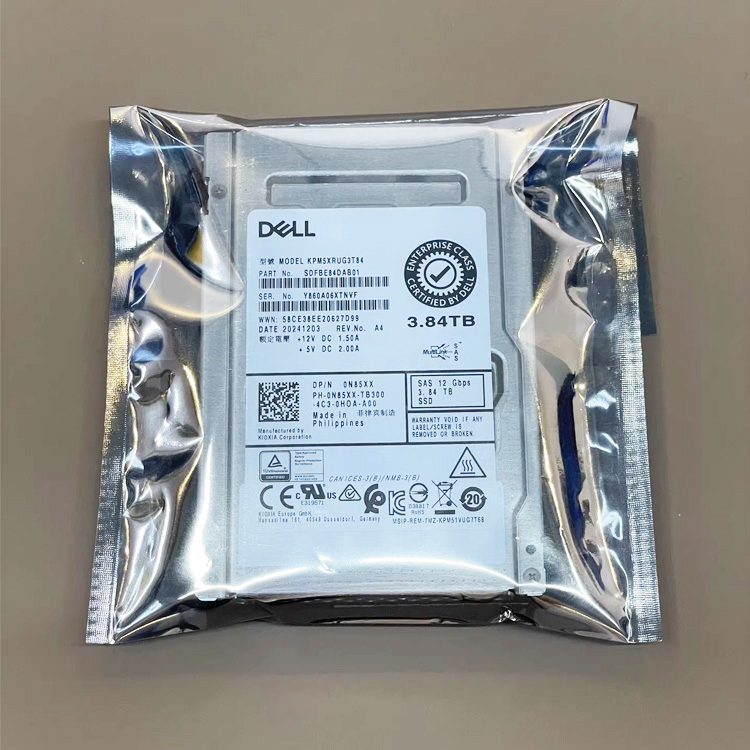

Dell KFV6V 3.84TB SAS Enterprise SSD, KPM5WRUG3T84 SAS 12Gbps Interface, Enterprise-grade SSD, Suitable for Dell ME5024/R740.

Description

Dell N85XX / KIOXIA Toshiba KPM5XRUG3T84 3.84TB 2.5″ 12Gbps Read Intensive 1-DWPD MLC SIE SAS SSD ME4 – Brand NewDell N85XX / KIOXIA Toshiba KPM5XRUG3T84 3.84TB 2.5″ 12Gbps Read Intensive 1-DWPD MLC SIE SAS SSD – Brand New

PM5-R Series – Enterprise Read Intensive SSD

PM5-R 12.0 Gbit/s enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 1 DWPD (Drive Write Per Day) with capacities up to 15.36 TB.

Key Features

12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
Capacities from 480 GB to 15.36 TB
T10 Multi-Stream Write support
Up to 385 K random read IOPS (4 KiB) in dual port mode
2.5 inch form factor, 15 mm Z-height
1 DWPD with 100 % Random Write Workload
Power loss protection and end-to-end data protection, including T10 DIF
Pin-3 power disable support
Sanitize Instant Erase (SIE) option
Self-Encrypting (SED) option
Self-Encrypting (SED), FIPS 140-2 validated option
5-year limited warranty

Key Applications

Media streaming
Data warehousing
Web servers
Video on demand (VOD)

Compatibility

This drive is designed to work in the Dell ME4 series arrays. This includes the ME4012, ME4024, ME4084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.

Specifications

Enterprise Read Intensive SSD
Model Number	KPM5XRUG3T84
Basic Specifications
Interface	SAS-3.0
Interface Speed	12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory Type	BiCS FLASH TLC
Formatted Capacity	3.84TB / 3,840GB
Sustained 64KiB Sequential Read	2,100 MiB/s
Sustained 64KiB Sequential Write	2,100 MiB/s
Sustained 4KiB Random Read	370,000 IOPS
Sustained 4KiB Random Write	55,000 IOPS
Reliability
MTTF	2,500,000 hours
DWPD	1
Power Requirements
Supply Voltage	5 V ±7 % , 12 V ±7 %
Power Consumption (Operating)	3.2W Typ.
Dimensions
Height	15.0 mm +0 , -0.5 mm
Width	69.85 ±0.25 mm
Length	100.45 mm Max.
Weight	130 g Max.
Enviromental
Temperature (Operating)	0 to 55 °C
Relative Humidity ( Operating )	5 to 95 % R.H.
Vibration (Operating)	21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)	9.8 km/s {1,000 G} (0.5 msec)
