New generation flagship AI server
Main application scenarios: AI training HPC、 data analysis

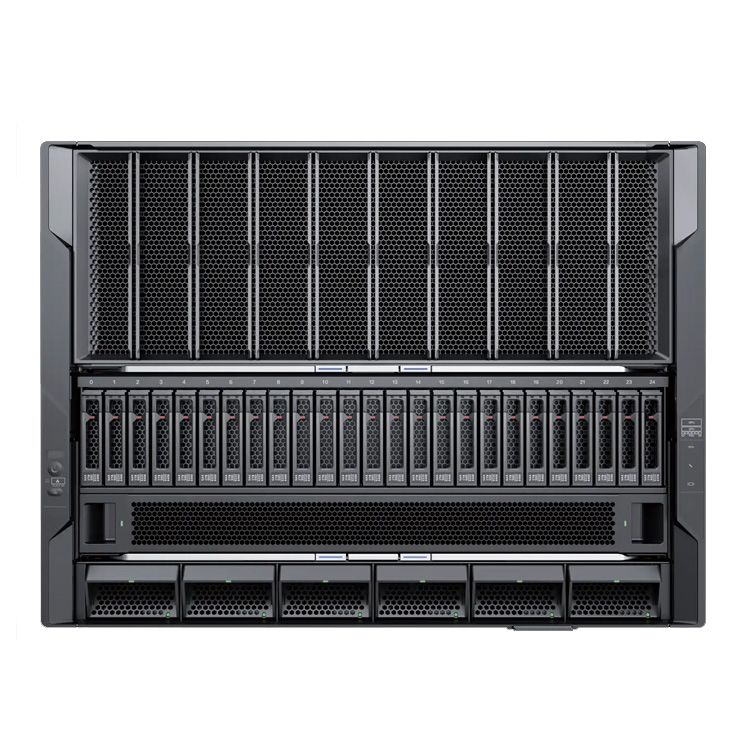

FusionServer G8600 V7 (hereinafter referred to as G8600 V7) is a new generation flagship AI server that supports 8GPU modules and has the expansion capability of 12 PCIe standard cards and 1 OCP card. It provides ultra large capacity or high-speed storage by supporting 8 2.5-inch hard drives and 8 NVMe SSD drives.
G8600 V7 is used for high-performance scenarios such as training, scientific computing, image and data analysis.
The G8600 V7 has the advantages of flagship computing power, ultimate energy efficiency, ultimate reliability, and easy operation and maintenance
1 Main features
Flagship computing power: The G8600 V7 supports 8GPU modules and has powerful computing capabilities, suitable for high-performance scenarios such as AI training, scientific computing, image and data analysis.
Ultimate energy efficiency: The server adopts the industry’s innovative GPU MPC algorithm, which reduces fan power consumption. At the same time, the heat dissipation capacity of the super fusion fan 8080++is increased by 20% to 30%, and the energy efficiency is improved by 16%. In addition, the self-developed titanium power supply has high energy efficiency, saving up to 200W per unit, and supports dual zone power supply, further improving energy efficiency.
2. Highly Reliable: The G8600 V7 adopts a highly reliable power supply architecture with a dual bus powered 54V power supply design, reducing the number of power supplies but increasing redundancy. At the same time, the server also supports modular and easy operation and maintenance, allowing for module replacement without the need for removal, greatly reducing maintenance time.
Flexible Topology: The G8600 V7 is compatible with NVIDIA’s high-performance and balanced topologies, with a leading design and support for PCIe 5.0 devices. The entire frame is cable free, making the topology structure more flexible.
Detailed configuration
Processor: G8600 V7 supports 2 fourth/fifth generation Intel Xeon Scalable processors (specific models may vary depending on configuration), with a maximum supported power of 385W (or 350W, depending on specific configuration) per processor.
Memory: The server provides 32 memory slots and supports DDR5 memory, with a maximum capacity of 4800MT/s (or 5600MT/s, depending on the specific configuration). The maximum capacity per memory can reach 256GB (or 128GB, depending on the specific configuration).
4 Storage: The G8600 V7 supports multiple hard drive configurations, including front 8 × 2.5-inch SAS/SATA hard drives and rear 8 × 2.5-inch NVMe SSD hard drives, or up to 24 3.5-inch SAS/SATA hard drives and 12 NVMe SSD drives (depending on the specific configuration). In addition, it also supports Flash storage and dual M.2 SSDs. RAID supports optional levels such as RAID 0, 1, 10, 5, 50, 6, 60, etc.
Network: The server has multiple network expansion capabilities, supports up to 1 or 3 OCP 3.0 network cards (depending on the specific configuration), and supports notification based hot plugging.
PCIe Expansion: The G8600 V7 supports up to 13 PCIe expansion slots, including 12 PCIe 5.0 x16 standard expansion slots and 1 OCP 3.0 network card (or 20 PCIe standard slots, 1 OCP 3.0 slot, and 1 built-in RAID card slot, depending on the specific configuration)
5 Other Characteristics
Cooling system: The server adopts an advanced cooling system, with 10 54V fans in the GPU area and 5 12V fans in the CPU area, all supporting N+1 redundancy.
Management system: G8600 V7 integrates iBMC chip, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features. At the same time, it supports standard interfaces such as Redfish, SNMP, IPMI 2.0, and provides a remote management interface based on HTML5/VNC KVM. Optional FusionDirector management software is available to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle.
6 Security features: The server supports power on passwords, administrator passwords TPM 2.0、 Secure boot and other security features ensure data security.
application environment
Working temperature: 5 ℃ 35 ℃ (41 ℉ 95 ℉).
Product certification: CQC, CE, RoHS.
7 Appearance and Installation
Appearance dimensions: height 352.8mm (or 356mm, depending on the specific measurement method) x width 447mm x depth 925mm (or 898mm, depending on the specific configuration).
Installation kit: Supports L-shaped slides for easy installation and disassembly.
The Fusion Server G8600 V7 is a new generation flagship AI server with excellent performance, high energy efficiency, strong reliability, and easy operation and maintenance, suitable for various high-performance computing scenarios
