20TB 的密度账：氦气密封为什么是数据中心 HDD 的唯一答案

企业硬盘的容量竞赛早已不是盘片工艺的竞赛，而是”能不能把更多盘片装进标准 3.5 英寸盒子”的竞赛。空气盘到 12TB 就到顶，而 Toshiba MG10 系列用 第四代 10 盘片氦气密封设计把每盘密度推到 2TB，单盘做到 20TB。氦气的意义不只是容量：氦气比空气轻 7 倍、阻力小、密封后无湿度侵蚀，直接带来更低的运行功耗和更长的寿命 – 这是 5 年 TCO 账里实实在在的数字。

Core Specifications

Attributo	Specifica
Capacità	20 tubercolosi (CMR, 10-disk helium-sealed)
Recording technology	Flux Control Microwave-Assisted Magnetic Recording (FC-MAMR)
Interfaccia / format	SATA 6.0 Gbit/sec, 512e (4Kn and SED variants available)
Rotation speed	7,200 giri/min
Buffer	512 MiB
Max transfer speed	281 Mb/s
Workload rating	550 TB transferred per year
Energia (Idle-A)	4.38 W
Reliability	MTTF/MTBF 2,500,000 ore (AFR 0.35%)
Peso	720 G
Fattore di forma	3.5-pollice, 26.1 mm height

The W/TB Math: Where Helium Pays for Itself

Run the numbers on a 60-bay storage node: 60 x 20TB helium drives deliver 1.2 PB per node at 4.38 W idle each – roughly 263 W of idle power for 1.2 PB, versus air-filled drives that would need 25% more disks (or double the nodes) for the same capacity at higher per-disk power. On a 3-year power contract, the helium premium pays back long before the drives are retired; on floor space it never goes back. IL 550 TB/year workload rating – over 1.5x daily full-drive writes – covers backup, archive, object storage and video-surveillance duty without endurance anxiety.

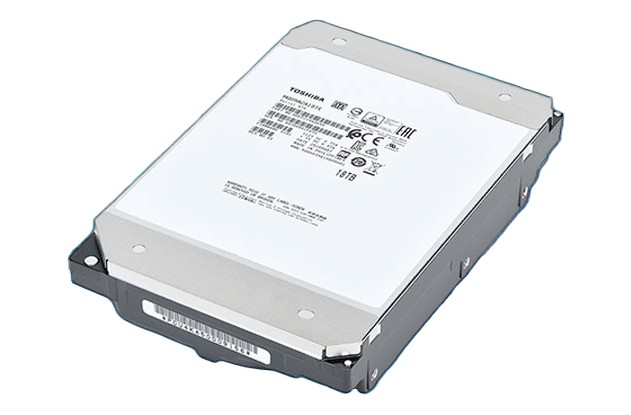

Toshiba MG10 series enterprise hard drives — Toshiba MG10 series: 10-disk helium-sealed CMR design delivers 20TB at 7200rpm in the standard 3.5-inch form factor.

FC-MAMR and CMR: Compatibility Without Compromise

MG10 uses Toshiba’s Flux Control Microwave-Assisted Magnetic Recording (FC-MAMR) to hit 2TB per disk while keeping Conventional Magnetic Recording (CMR) – no shingled-write penalties. That means random-write workloads behave like classic CMR drives, and the drive slots into any SATA backplane, array or server without special-casing. The 512e model (MG10ACA20TE) includes Toshiba Persistent Write Cache Technology, which protects data on sudden power loss; 4Kn (MG10ACA20TA) and SED (MG10ACA20TAY/TEY) variants cover specific deployments.

Reliability Numbers

MTTF/MTBF: 2,500,000 hours with 0.35% annual failure rate.
Workload: 550 TB per year rating for sustained data-center duty.
Energia: 4.38 W idle (SATA 20TB), 281 MB/s max transfer.
Protection: Persistent Write Cache (512e models) for sudden power-loss events.
Density: 10-disk helium design – 20TB in the standard 3.5″ 26.1mm bay.

Toshiba MG10ACA20TE 20TB hard drive — MG10ACA20TE: 20TB SATA 6Gb/s 512e enterprise drive, drop-in for 3.5-inch hot-swap bays.

Buying FAQ

CMR or SMR? Full CMR – random writes behave normally, no shingling caveats.
Interfaccia? SATA 6Gbit/s, 512e with Persistent Write Cache; 4Kn and SED variants available.
Workload fit? Cloud-scale capacity, object storage, backup/archive, surveillance – 550 TB/year rated.
Power draw? 4.38 W idle – helium efficiency for dense storage nodes.
Best-fit servers? 3.5-inch bays: 20 in an xFusion2288H V7 O 12 in a PowerEdge R760.

Toshiba MG10 series product family — MG10 family covers SATA and SAS, 512e/4Kn and SED variants across the 14-20TB range.

Building a 1PB+ storage tier? We supply the MG10ACA20TE with matching servers and RAID configuration – factory-direct pricing, 3-anno di garanzia, global shipping and free capacity-planning consultation from our authorized partner team. Contact us for a per-TB TCO comparison.
