Продам сервер Dell/Xfusion/Huawei.,Из Китая.

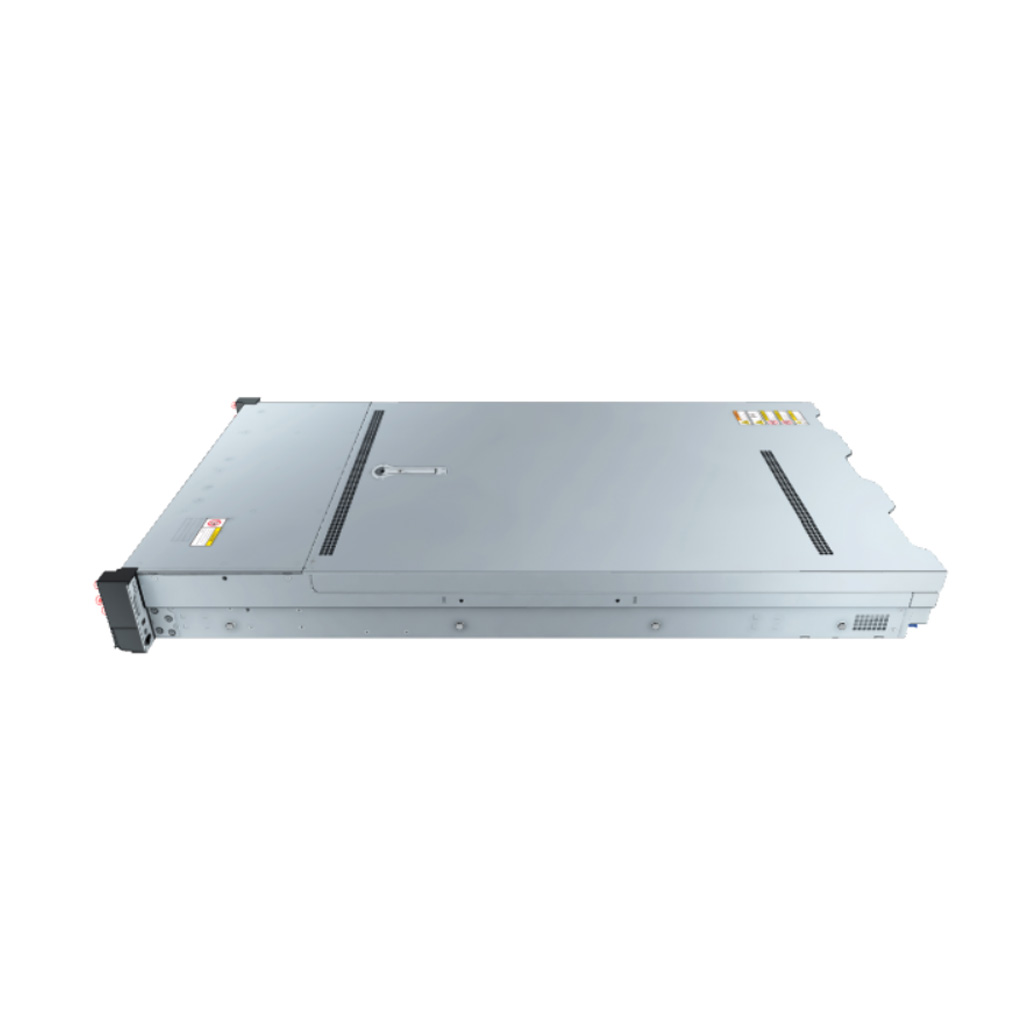

FusionServer 2288H V6 is a 2U rack mounted server with flexible configuration that can be widely used for loads such as cloud computing, виртуализация, базы данных, и большие данные. The 2288H V6 can be configured with 2 Intel channels ® xeon ® Scalable processor, 16/32 DDR4 memory, 14 PCIe expansion slots, supports large capacity local storage resources. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optional FusionDirector full lifecycle management software, it can effectively reduce operating costs and improve investment returns.
1.Larger storage capacity
45 2.5-inch hard drives，34 твердотельные накопители NVMe ，12Объем памяти ТБ
2.Flexible expansion, diverse applications
80 core universal computing power，4 300W full height, full length, dual width GPU acceleration cards，8 полная высота, full length, single width GPU acceleration cards，11 half height, половина длины, single width GPU acceleration cards
3.Configure more
Flexible selection of 32DIMM and 16DIMM models，2 OCP3.0 network cards, hot swappable，14 PCIe 4.0 Слоты расширения, supporting multiple applications2 M.2 SSDs, hot swappable, hard RAID
Модель
FusionServer 2288H V6
Форма
2U стоечный сервер
Процессор
1/2 of third-generation Intel ® xeon ® Scalable processor (Ледяное озеро) (8300/6300/5300/4300 ряд), до 270 Вт, capable of supporting Lanchijin processors
Чипсет
Intel C621A
Память
16/32 DDR4 Слоты памяти, до 3200 мт/с; Вплоть до 16 Intel products ® Aoteng ™ Persistent memory 200 ряд, до 3200 мт/с
Локальное хранилище
Supports multiple different hard drive configurations, and the hard drive supports hot swapping:
Can be configured with 8 к 31 2.5-inch SAS/SATA/SSD hard drives
Can be configured with 12-20 3.5-inch SAS/SATA hard drives
• Configurable 4/8/16/24 NVMe SSD drives
• Supports up to 45 2.5-inch hard drives or 34 full NVMe SSDs
• Can be configured with 2 M.2 SSD hard drives
Поддержка RAID
Optional configuration supports RAID0, 1, 10, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID level migration, диск бродящий, self diagnosis, web remote settings and other functions
Сеть
Supports multiple network expansion capabilities, supports OCP 3.0 network cards -2 FLEX IO card slots each support 2 OCP 3.0 network cards, and supports on-demand selection. Supports hot swapping
Расширение PCIe
14 PCIe 4.0 Слоты расширения, supporting multiple applications
Heterogeneous acceleration card
Поддерживать 4 300W full height, full length, dual width GPU acceleration cards/11 half height, половина длины, single width GPU acceleration cards/8 full height, full length, single width GPU acceleration cards
Fan
4 hot swappable counter rotating fans, Поддержка n+1 избыточность
Источник питания
Two redundant hot swappable power supplies can be configured, поддержка 1+1 избыточность. Дополнительные спецификации следующие:
900 W AC Platinum/Titanium Power Supply (Вход: 100V AC~240V AC or 192V DC~288V DC)
1500W AC Platinum Power Supply
1000Вт (вход: 100V AC~127V AC)
1500Вт (Вход: 200V AC~240V AC or 192V DC~288V DC)
1500W 380V High Voltage DC Power Supply (Вход: 260V DC~400V DC)
1200W -48V~-60V DC power supply (вход: -38.4V DC~-72V DC)
3000W AC titanium power supply
2500Вт (вход: 200V AC~220V AC)
2900Вт (вход: 220V AC~230V AC)
3000Вт (вход: 230V AC~240V AC)
2000W AC Platinum Power Supply
1800Вт (Вход: 200V AC~220V AC or 192V DC~200V DC)
2000Вт (Вход: 220V AC~240V AC or 200V DC~288V DC)
Manage
BMC chip integrates a dedicated management GE network port, providing comprehensive fault diagnosis, automated operation and maintenance, hardware security reinforcement and other management features
BMC supports standard interfaces such as Red, SNMP, IPMI2.0, и т. д.; Provide a remote management interface based on HTML5/VNC KVM; Support out of band management functions such as monitoring, диагноз, конфигурация, Без агента, и дистанционное управление, Упрощение сложности управления
FusionDirector management software is optional, providing advanced management features such as five major intelligences to achieve intelligent, автоматизированный, визуализированный, and refined management throughout the entire lifecycle
Operating system
Сервер Microsoft Windows、SUSE Linux корпоративный сервер、VMware ESXi、Ред Хэт Энтерпрайз Линукс、ЦентОС、Oracle Linux、Убунту、Дебиан、openEuler Wait, for more compatible systems, please click here to view
Функции безопасности
Support power on password, administrator password TPM 2.0、 Safety features such as safety panel, safety start, and lid opening detection
Operation temperature
5 º C to 45 º C (41 º F to 113 º F) (соответствует классу ASHRAE A1/A2/A3/A4)
Сертификация продукта
CE, UL, ССС, ФКС, VCCI, РоХС, и т. д.
Installation package
Support L-shaped slide, extendable slide, and rail support
Размеры (height x width x depth)
3.5-inch hard drive chassis size: 86.1mm × 447mm × 790mm
2.5-inch hard drive chassis size: 86.1mm × 447mm × 790mm
